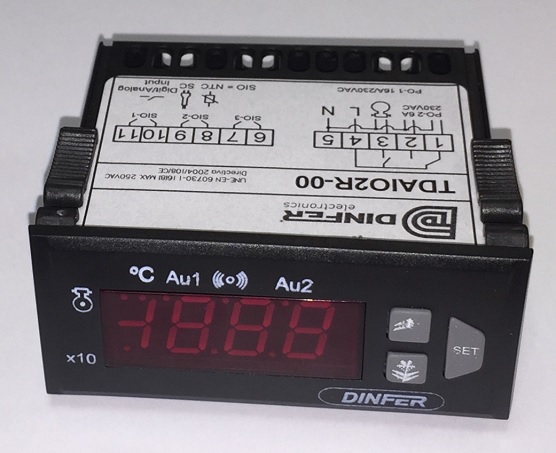

TDAIO2R-00
DIGITAL CONTROLLERS
Unit description
Digital thermostat used for controlling heating systems and refrigeration systems with or without glycol, adaptable through parameters menu. Possibility of being used along with a parameters copykey and other remote comunication systems, as displays to show information or dataloggers.
Electrical characteristics
– Heating and refrigeration systems control
– Absorbed power: 1.5VA MAX
– Actor 1: Relay 1 contact NO/16A
– Actor 2: Relay 2 contacts NO/6A
– Sensor type (temp): NTC6K8/NTC10K (25ºC)
– Sensor type (cond): SC / 2 electrodes AISI-304
– Effective conductivity range: 100μS to 4000μS
– Temperature range: -40ºC to 99ºC / -40ºF to 217ºF
– Connections: 11 terminals borne
